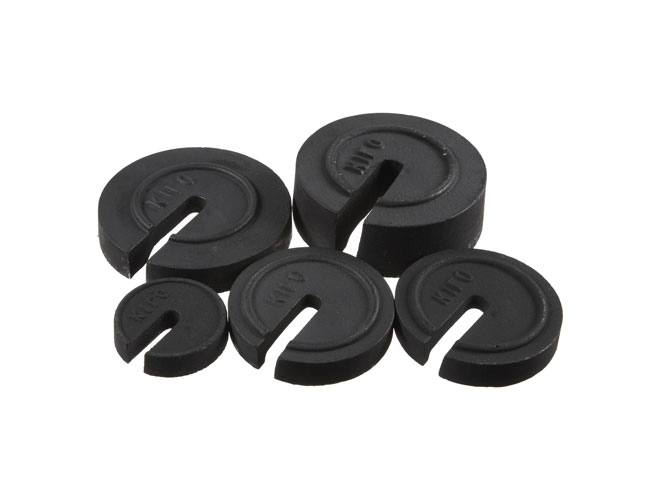

Cast Iron Slotted Weights are used in a variety of applications such as pressure, torque, and tensile strength testing. Slotted Weights are typically used with a hanger that also has itsweight calibrated so the hanger can be used as part of the overall weight under test.
Material: Cast iron
Class: M1
Density: 7.0g/cm³
For testing or calibrating weighing equipment with a division size of 1g or more, or for proof load testing
The weights have a slot to fit in value according to need
| OIML R111 | |||||
| Denomination Metric |
Tolerance | ||||
| M1 | M12 | M2 | M23 | M3 | |
| 50kg | 2500 | 5000 | 8000 | 16000 | 25000 |
| 20kg | 1000 | – | 3000 | – | 10000 |
| 10kg | 500 | – | 1600 | – | 5000 |
| 5kg | 250 | – | 800 | – | 2500 |
| 2kg | 100 | – | 300 | – | 1000 |
| 1kg | 50 | – | 160 | – | 500 |
| 500g | 25 | – | 80 | – | 250 |
| 200g | 10 | – | 30 | – | 100 |
| 100g | 5 | – | 16 | – | 50 |
| 50g | 3 | – | 10 | – | 30 |
| 20g | 2.5 | – | 8 | – | 25 |
| 10g | 2 | – | 6 | – | 20 |
| 5g | 1.6 | – | 5 | – | 16 |
| 2g | 1.2 | – | 4 | – | 12 |
| 1g | 1 | – | 3 | – | 10 |
ASTM E617-13
| Denomination Metric |
± mg except as noted | |
| Class 6 | Class 7 | |
| 50kg | 5g | 7.5g |
| 30kg | 3g | 4.5g |
| 25kg | 2.5g | 4.5g |
| 20kg | 2g | 3.8g |
| 10kg | 1g | 2.2g |
| 5kg | 500mg | 1.4g |
| 3kg | 300 | 1.0g |
| 2kg | 200 | 750mg |
| 1kg | 100 | 470 |
| 500g | 50 | 300 |
| 300g | 30 | 210 |
| 200g | 20 | 160 |
| 100g | 10 | 100 |
| 50g | 7 | 62 |
| 30g | 5 | 44 |
| 20g | 3 | 33 |
| 10g | 2 | 21 |
| 5g | 2 | 13 |
| 3g | 2.0 | 9.4 |
| 2g | 2.0 | 7.0 |
| 1g | 2.0 | 4.5 |
