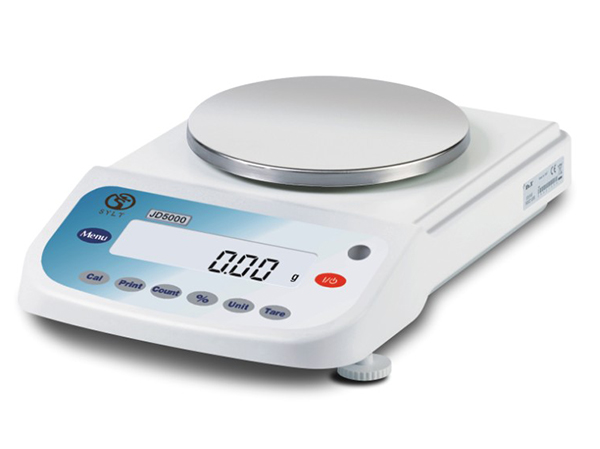

The electronic balance isproduced by imported advanced technology with high accuracy, the key components of which are imported products, is suitable for the requirement of high precision metrological analysis.
Under-mounted electromagnetic sensor, ultra-thin shape, easy to operate without draft shield, take less space.
VFD / LCD display.
Overload/underload alarm, temperature compensation. full range tare, accumulate/decrement, bottom hook weighing (Optional density device).
RS232 output interface, can be connected with computers or printers.
Widely used in measurement, analysis and education of scientific research, medical, Chemical, metallurgical and agricultural industries.
Fast weighing time, high accuracy, good stability and quality, simple operation, convenient to maintenance, and be able to connected with computer and printer which will improve working efficiency.
|
Balance Model |
JD500-2 |
JD1000-2 |
JD2000-2 |
JD3000-2 |
JD4000-2 |
JD5000-2 |
|
Max capacity |
500g |
1000g |
2000g |
3000g |
4000g |
5000g |
|
Readability（d） |
0.01g |
|||||
|
Repeatability |
≤±0.01g |
|||||
|
Linearity Error |
≤±0.02g |
|||||
|
Loading Error(Corners) |
≤±0.02g |
|||||
|
Discrimination |
1.4d |
|||||
|
Sensitivity Drift |
±2ppm/℃ |
|||||
|
Clock Drift |
±0.1g |
|||||
|
Stabilization Time |
≤5s |
|||||
|
Working Temperature |
10℃~45℃ |
|||||
|
Atmospheric Humidity |
20%RH~85%RH |
|||||
|
Power supply |
DC15V 1A Power Consumption≤20W |
|||||
|
Calibration |
Automatic Calibration（Place calibration Mass in hand） |
|||||
|
Calibration Mass |
Optional |
|||||
|
Tare Range |
Full Range |
|||||
|
Display |
LCD / VFD |
|||||
|
Pan Size |
Φ160mm |
|||||
|
Balance Dimensions |
335×205×100 |
|||||
|
Net Weight |
5kg |
|||||
|
Gross Weight |
6.1kg |
|||||
|
Package size |
445×350×235 |
|||||
|
Bottom Hook |
Optional |
|||||
|
Output Interface |
RS232C |
|||||
|
Weight Unit |
Gram |
|||||
|
Optional Weight Unit |
Gram/Carat/Pound |
|||||
|
Counting |
Yes |
|||||
|
Weighing in Percent |
Yes |
|||||
|
Animal Weighing |
Customizable |
|||||
|
Solid Density Mode |
Customizable |
|||||
|
Printer Configuration |
Time, S/N, Values |
|||||
