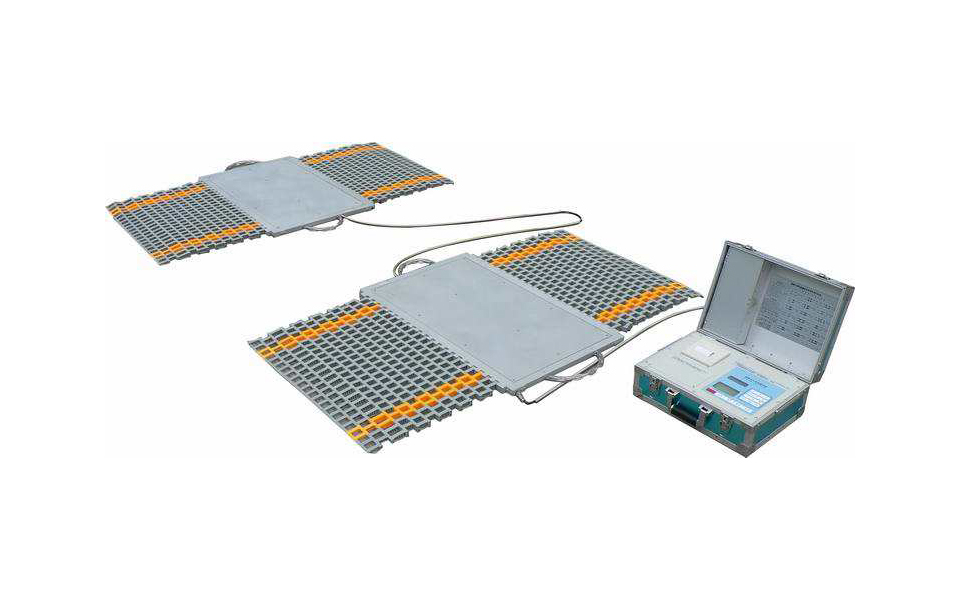

Be made of aluminium alloy and used for static weighing of cargo vehicles.
Product weight： ① table：27Kg (single) ② Instrument：9Kg
Product size： ① table：800×350×22mm ② Instrument：430×335×170mm
Stable and reliable wireless transmission distance：① Barrier-free：25m ② with barrier：15m
Protection grade：① Wireless weighing platform IP67 ② Wireless Instrument IP65
Equipment Storage Conditions：① temperature range： -30～+80℃ ② relative humidity：＜90%RH
Products are widely used in agriculture, forestry, animal husbandry, mining, wharf, logistics center and other places with high weighing accuracy requirements.
The table is thin, light and easy to carry.
| Specification | Value |
| Capacity range | Wheel weight：≤20t shaft weight：≤40t Whole vehicle weight：≤1000t (Maximum cumulative 20 axes) |
| Static Synthetic Accuracy | ±0.5%FS |
| Dynamic Synthetic Accuracy | — |
| Sensitivity | 0.7±0.1mV/V |
| Nonlinearity | ≤0.30%FS |
| Repeatability | ≤0.05%FS |
| Zero Output | 600±200UV |
| Input Resistance | 1000±10Ω |
| Working temperature range | -30～+80℃ |
| Temperature Compensation Range | -10～+60℃ |
| Sensitivity Temperature Effect | 0.05%FS/10℃ |
| Zero Temperature Effect | 0.05%FS/10℃ |
| insulation resistance | 1000MΩ (100VDC) |
| Excitation Voltage | 9～12 DC |
| Overload capacity | 120% |
