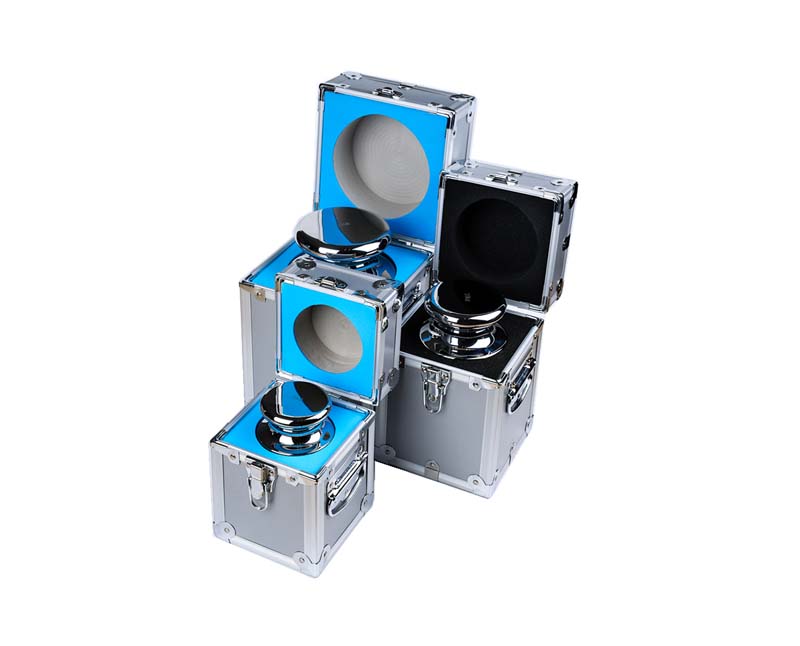

Individual/Single Weight with aluminum box, 5kg,10kg,20kg,25kg,50kg available.
Class: E1 E2 F1 F2 M1
Material: Stainless Steel
Nominal Value: 5kg-50kg
Package: Aluminum Box
Calibration for scales, balances or other weighing products in Laboratories, Pharmaceutical Factories, Scales Factories, etc.
Good for weight protection, and easy to carry.
Product Configurations:
Styles：Cylindrical
Process：Mirror/Mechanical polishing
Class：E1、E2、F1、F2、M1
Standard Individual Weights Range: 5kg-50kg
|
Weight |
Diameter |
Height |
Material |
|
5kg |
78 |
140 |
SS, Chrome plated |
|
10kg |
96 |
186 |
SS, Chrome plated |
|
20kg |
120 |
228 |
SS, Chrome plated |
|
50kg |
177 |
280 |
Stainless Steel |
|
Remarks: All dimensions are only for reference. Any dimensions subject to change without notice. |
|||
Dimensions of Aluminum Box
|
Nominal Value |
Length |
Width |
Height |
Weight |
Material |
||||
|
BU |
BK |
BU |
BK |
BU |
BK |
BU |
BK |
||
|
5kg |
122 |
122 |
122 |
122 |
180 |
180 |
717 |
760 |
Aluminum |
|
10kg |
143 |
143 |
143 |
143 |
220 |
218 |
904 |
1001 |
Aluminum |
|
20kg |
173 |
173 |
173 |
173 |
257 |
257 |
1223 |
1383 |
Aluminum |
|
Remarks: All dimensions are only for reference. Any dimensions subject to change without notice. |
|||||||||
