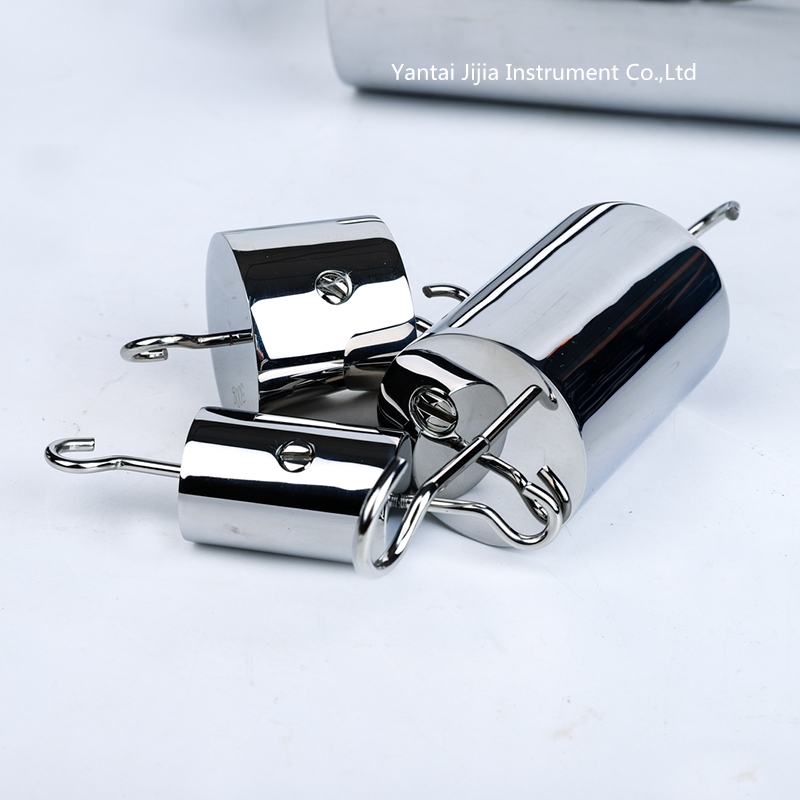

Double Hook Weight/Hanger Weight-Stainless Steel/Chrome plated

Material: Stainless Steel/ Chrome Plated/ Brass

Process:Mirror Polishing/Chrome plated

Class:F1、F2、M1

Unit: kg, newtons, LB

Features and Specifications

Class: F1/F2/M1

Package: Without Case / Aluminum Case

Norminal Value: 1g-50kg, Newtons, LB

Material: stainless steel, brass, chrome plated etc.

Application

All kind of dynamical measurements.

Advantages

Beautiful surface and roughness, better quality/accuracy, longer life, easy for maintenance

Parameter

Nominal Value Single Hook Weights Double Hook Weights
Diameter A3 C3 Diameter A4 C4
1g 2 26 2 25
2g 3 23 2 39
5g 3 40 3 42
Nominal Value Diameter A1 B1 C1 Diameter A2 B2 C2
10g 13 7 39 13 11 55
20g 13 17 45 13 13.5 73
50g 18 26 57 18 23.5 69
100g 28 21 52 28 21 83
200g 28 43 76 28 40 134
500g 38 58 104 38 57 152
1kg 48 72 116 48 73 161
2kg 63 83 129.5 63 82 166
5kg 83 119 161 83 119 203
10kg 103 154 239 103 154 324
20kg 128 200 285 128 200 370
50kg 180 265 385 180 265 505
Remarks: All dimensions are only for reference.
Any dimensions subject to change without notice.
